Diode Dynamics DD8840 Universal D-Switch 8-Channel Control Kit

Description

Overview Upgrade your vehicles setup with the Diode Dynamics D-Switch! This advanced 8-channel switch panel gives you full control over any 12V accessory with four 30A and four 15A outputs, delivering serious power with unrivaled customization. Dedicated Backlight Channel. Unlike other 8-button controllers, the D-Switch includes a 9th button for the dedicated backlight bus bar, providing eight extra outputs for accent lighting. Activate all backlit accessories with a single press, freeing up main outputs for other functions. Dynamic Channel Assignment. Unlike one-to-one switch panels, the D-Switch allows multiple output channels per button, giving you complete control over your setup. You can also assign multiple functions of an output to different buttons, such as configuring one button for flashing and another for full power of the same light. Fast, Responsive Bluetooth App. Control and configure settings using the Bluetooth app for iOS and Android, which delivers instant response, no lag, and seamless programming. OEM Signal Integration. Three trigger wires are included to automatically activate your outputs with vehicle signals such as high beams, fog lights, or reverse lights. The ignition wire powers the controller when the vehicle starts, shutting it down automatically when turned off. The Night Mode wire adjusts output settings and controller brightness for low-light conditions. Solid-State, Durable Design. The D-Switch is built to withstand the toughest conditions, with a solid-state design and an IP67-rated aluminum heatsink for superior heat dissipation. No mechanical relays to wear out or physical fuses to replace! Whether for off-road lighting or other 12V accessories, the D-Switch offers unmatched power, customization, and reliability. Program and control multiple lights with one button. Dedicated button and bus connector for backlight. Fast responsive Bluetooth App to control and customize settings. Included in the box: One (1) Switch Panel Hub One (1) Switch Panel Controller One (1) Controller Universal Mounting Bracket One (1) 10-foot Controller Wiring Harness One (1) Trigger Wires + Night Mode Wiring Harness One (1) 3-foot 4AWG Battery Cable One (1) 3-foot 4AWG Ground Cable Two (2) Button Sticker Sheets Five (5) T-taps Six (6) Zip Ties One (1) D-Switch Hub Mount Double-sided tape Installation Hardware Installation & Programming Guide

• Three trigger wires for OEM-like control through vehicle signals.
• Fast responsive Bluetooth App - no lagging or loading screens!
• Solid-state fully-encapsulated design for extreme durability.
• Dedicated backlight channel to control your accent lighting.
• Group and control multiple outputs with a single button.

The Diode Dynamics DD8840 Universal D-Switch Kit provides centralized control for 12V accessories through an 8-channel switch panel. It features four 30A outputs and four 15A outputs for flexible accessory management, allowing multiple output channels to be assigned to a single button or different functions to be assigned across buttons.

A dedicated backlight channel and bus bar provide control for accent lighting, while the additional backlight button activates connected backlit accessories with a single press. Settings and functions can be configured through the fast-response Bluetooth app for iOS and Android devices.

Three trigger wires support OEM-style integration with vehicle signals such as high beams, fog lights, and reverse lights. The ignition wire powers the controller when the vehicle starts and shuts it down when the vehicle is turned off. A Night Mode wire adjusts output settings and controller brightness for low-light conditions.

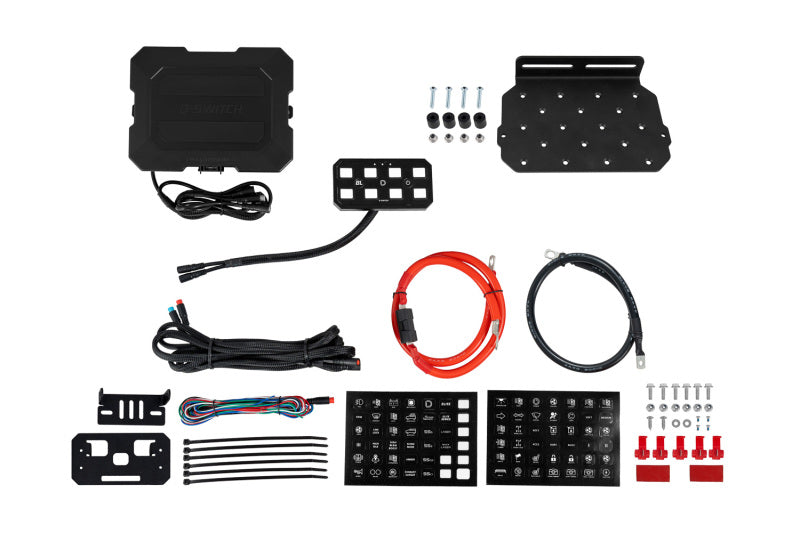

Built with a solid-state, fully encapsulated design, the D-Switch uses an IP67-rated aluminum heatsink for heat dissipation and eliminates mechanical relays and replaceable physical fuses. The kit includes the switch panel hub, controller, universal mounting bracket, wiring harnesses, battery and ground cables, mounting hardware, button sticker sheets, zip ties, T-taps, hub mount, double-sided tape, and an installation and programming guide.

Features:

• 8-Channel Control: Manage 12V accessories with four 30A outputs and four 15A outputs.
• Dynamic Channel Assignment: Group multiple outputs under one button or assign different functions of an output to separate buttons.
• Dedicated Backlight Channel: Control accent lighting through a dedicated backlight button and bus bar.
• Bluetooth App Control: Configure and control settings through the Bluetooth app for iOS and Android.
• OEM Signal Integration: Three trigger wires support activation through vehicle signals including high beams, fog lights, and reverse lights.
• Night Mode Function: Adjust output settings and controller brightness for low-light conditions.
• Solid-State Construction: Fully encapsulated design eliminates mechanical relays and physical fuses.
• IP67-Rated Aluminum Heatsink: Provides heat dissipation for the controller.
• Complete Kit: Includes the switch panel hub, controller, mounting components, wiring, cables, installation hardware, and programming guide.
