Diode Dynamics Stage Series Dual-Output 3-Way Wiring Harness DD4092

Description

Overview Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 16AWG wiring and Deutsch DT connectors for simple plug-and-play installation. This harness safely powers up to 6A of auxiliary lamps. Please refer to the current draw data below. C1 Sport: 1.2A C1 Pro: 1.7A SSC2 Sport: 0.6A SSC2 Pro: 1.75A SS3 Sport Main Beam: 1.1A, Backlight: 0.03A SS3 Pro Main Beam: 2.7A, Backlight: 0.03A SS3 Max Main Beam: 3A, Backlight: 0.03A Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors, we assemble and engineer products in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project! After over a decade in business Diode Dynamics is the most trusted name in automotive LED lighting. Unlike all other LED distributors we assemble and engineer products in the United State. Included in the box: One (1) wiring harness One (1) toggle switch

• Connects directly to the battery to power your offroad lighting
• 15A to safeguard the electrical systems in your offroad lighting
• battery to power your offroad lighting
• Black wire sheathing to protect cables
• Dual Deutsch DT output connectors
• Connects directly to the&nbsp
• High capacity 18AWG wiring

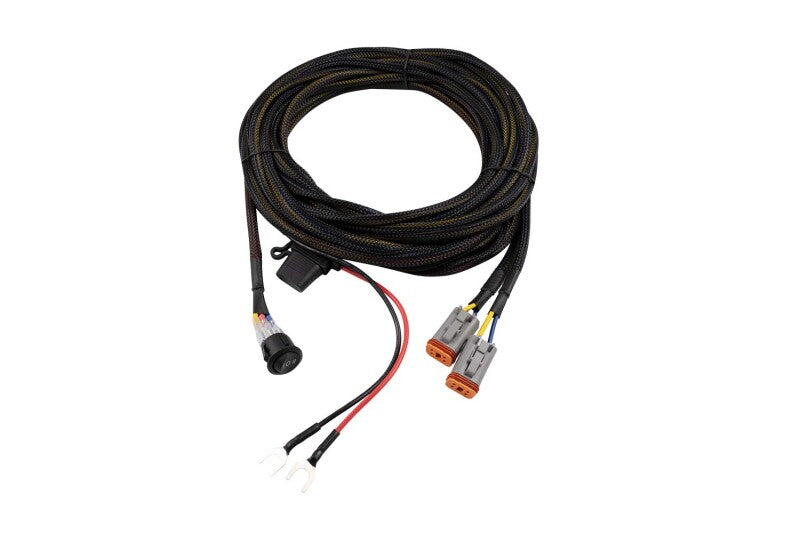

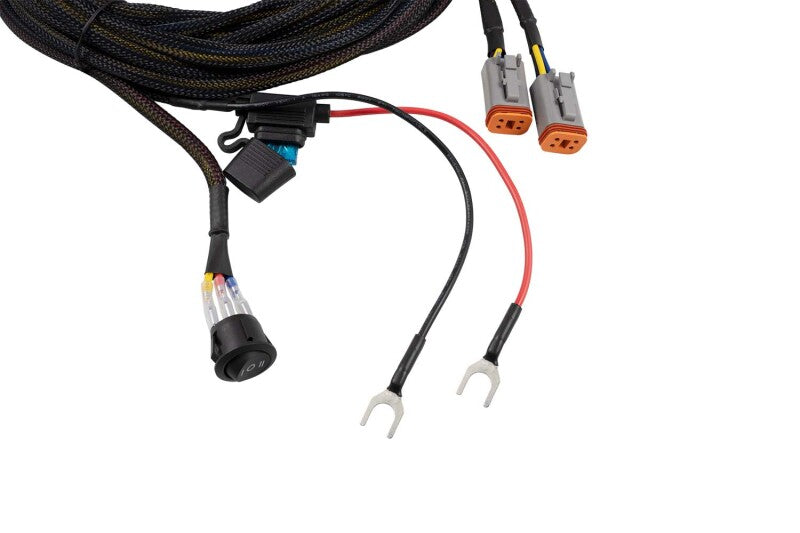

The Diode Dynamics Stage Series Dual-Output 3-Way Wiring Harness is designed for use with Stage Series pods featuring backlight functionality. It connects directly to your vehicle’s battery to power auxiliary off-road lighting and includes a three-way switch for selecting the backlight, off, or main beam functions.

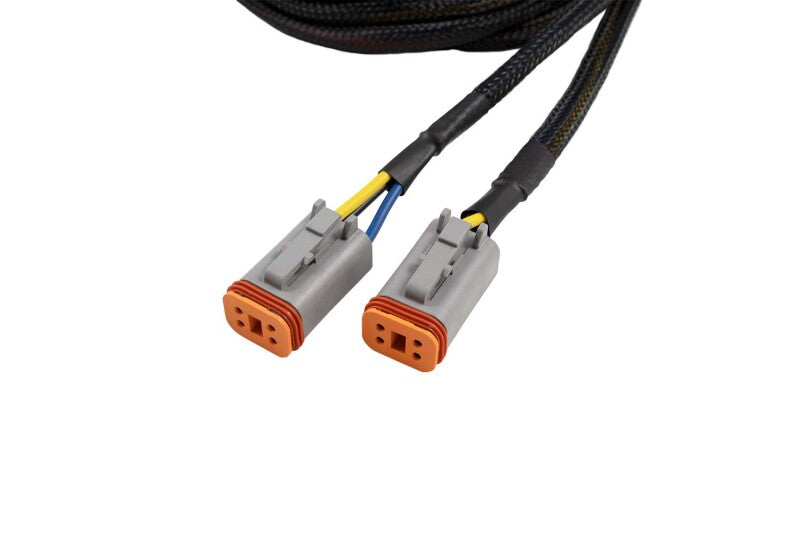

Built with high-capacity wiring and Deutsch DT connectors, this harness supports a simple plug-and-play installation. Its dual output connectors provide connection points for compatible lighting, while black wire sheathing helps protect the cables during installation and use.

The harness safely powers up to 6 amps of auxiliary lamps. Listed current draw information includes C1 Sport at 1.2A, C1 Pro at 1.7A, SSC2 Sport at 0.6A, SSC2 Pro at 1.75A, SS3 Sport main beam at 1.1A with a 0.03A backlight, SS3 Pro main beam at 2.7A with a 0.03A backlight, and SS3 Max main beam at 3A with a 0.03A backlight.

Diode Dynamics assembles and engineers its products in the United States, focusing on automotive LED lighting solutions. The box includes one wiring harness and one toggle switch.

Features:

• Stage Series Compatibility: Intended for Stage Series pods with backlight functionality.
• Three-Way Control: Toggle between the backlight, off, and main beam functions.
• Direct Battery Connection: Connects directly to the vehicle battery to power auxiliary off-road lighting.
• 6-Amp Capacity: Safely powers up to 6 amps of auxiliary lamps.
• Deutsch DT Connectors: Includes dual Deutsch DT output connectors for plug-and-play installation.
• Protective Sheathing: Black wire sheathing helps protect the cables.
• Included Components: Includes one wiring harness and one toggle switch.
