sPOD 870035 BantamX Touchscreen Control System for 2007-2018 Jeep Wrangler JK

Description

**Please expect a 2-4 week lead time on product**The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.• Fully programmable, digital controlled system• 8 circuits rated at 30 amps at 12.5 VDC per circuit• 16-position terminal block (easily attach accessories)• 2 controller ports (RJ45) for Ethernet cables• Integrated low voltage cutoff (LVCO) battery protection w/ optional override• One ATM mini-style fuse for LVCO protection & reset• Failsafe self-healing fault protection system (from 1.5 to 30amps)• Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)• 100amp in-line fuse• Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket• Operates on 12VDC or 24VDC• 8-position input terminal block for controlling outputs• Built-in Bluetooth capabilities for remote control• Protection against: overheating, over-current, shorts, reverse polarity & field collapse• Ignition control and safety lock-out for switches 1 and 2 (optional)• Up to 4 BantamX units can be daisy chained & controlled by one Touchscreen• On-demand wireless software updates/upgradesHARDWARE:• Powder coated steel base w/ built in hardware• Silicone gasket for weatherproofing•Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for supplied legend placement• Universal & vehicle specific mounting options• Robust insulated base and coverFEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):Each switch can be programmed for:•Dimming•Strobe BantamX Touchscreen - Jeep 2007-2018 Wrangler JK BantamX Touchscreen Jeep 2007-2018 Wrangler JK

• ‚Ä¢ Fully programmable, digital controlled system‚Ä¢ 8 circuits rated at 30 amps at 12

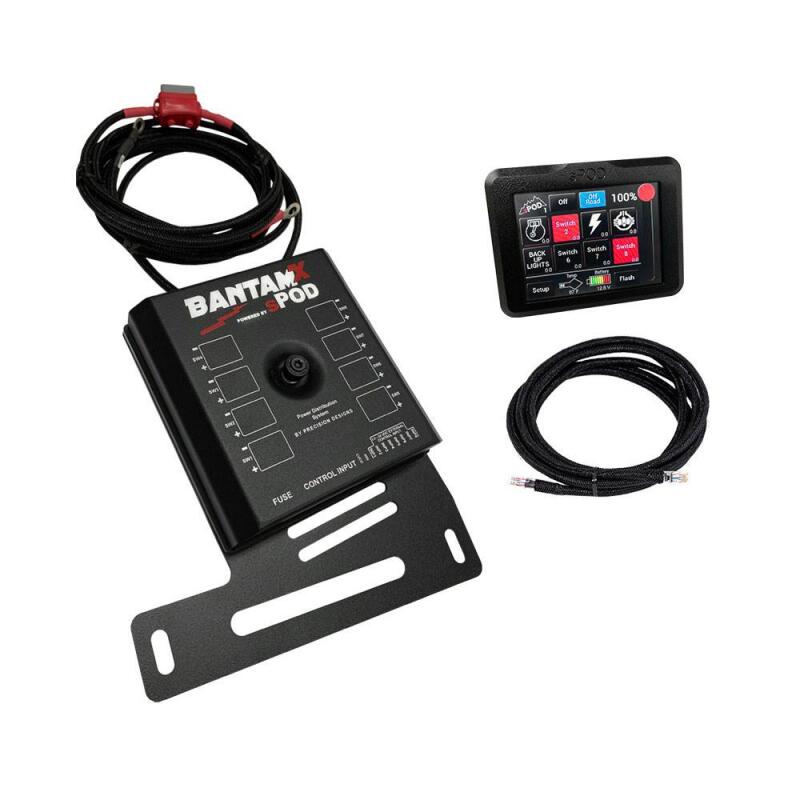

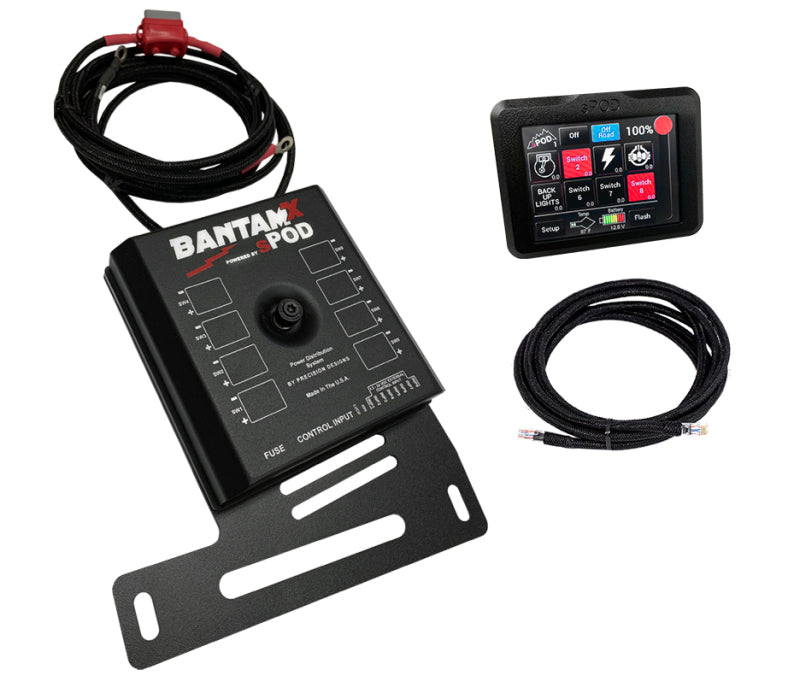

The sPOD BantamX Touchscreen Control System provides a clean, programmable way to power and control 12VDC or 24VDC accessories. Designed for the 2007-2018 Jeep Wrangler JK, the system uses a compact BantamX control unit and touchscreen interface to reduce wiring and installation time while providing centralized accessory management.

The BantamX features eight digitally controlled circuits, with each circuit rated at 30 amps at 12.5 VDC. Its 16-position terminal block helps simplify accessory connections, while two RJ45 controller ports support Ethernet cable connections. Built-in Bluetooth capabilities allow remote control through the free sPOD mobile app, and each switch can be programmed for functions including dimming and strobe operation.

Integrated protection features include low-voltage cutoff with optional override, a 100-amp inline fuse, and a self-healing fault protection system. The current-sensing MOSFET design is controlled by a microprocessor and eliminates the need for conventional fuses and relays for the output circuits. The system also provides protection against overheating, over-current conditions, short circuits, reverse polarity, and field collapse.

The weather-resistant hardware includes a powder-coated steel base, silicone gasket, insulated base and cover, and an aluminum lid secured with a thumb screw. The BantamX operates on 12VDC or 24VDC, supports optional ignition control and safety lockout for switches one and two, and allows up to four BantamX units to be daisy chained and controlled by one touchscreen. Wireless software updates and upgrades are available on demand.

Features:

• Eight programmable digital output circuits rated at 30 amps at 12.5 VDC per circuit
• Designed for 2007-2018 Jeep Wrangler JK applications
• Operates with 12VDC or 24VDC electrical systems
• Built-in Bluetooth capability for remote control through the free sPOD mobile app
• App-supported dimming and strobe programming for each switch
• 16-position terminal block for accessory connections
• Two RJ45 controller ports for Ethernet cable connections
• Integrated low-voltage cutoff with optional override
• 100-amp inline fuse and one ATM mini-style fuse for low-voltage cutoff protection and reset
• Self-healing fault protection from 1.5 to 30 amps
• Microprocessor-controlled, current-sensing MOSFETs without conventional output fuses and relays
• Protection against overheating, over-current, shorts, reverse polarity, and field collapse
• Optional ignition control and safety lockout for switches one and two
• Supports daisy chaining up to four BantamX units under one touchscreen
• On-demand wireless software updates and upgrades
• Powder-coated steel base with built-in hardware
• Silicone gasket, insulated base and cover, and thumb screw fastening aluminum lid
